O-ring Pusher seals use a sliding secondary seal and in this design the O-ring is pushed along the outside diameter of the equipment shaft or sleeve. The O-ring retains the sealed liquid and follows along the shaft to compensate for face wear.

TG120HB


Product variants

TG120HB

EagleBurgmann H12N series Replacement

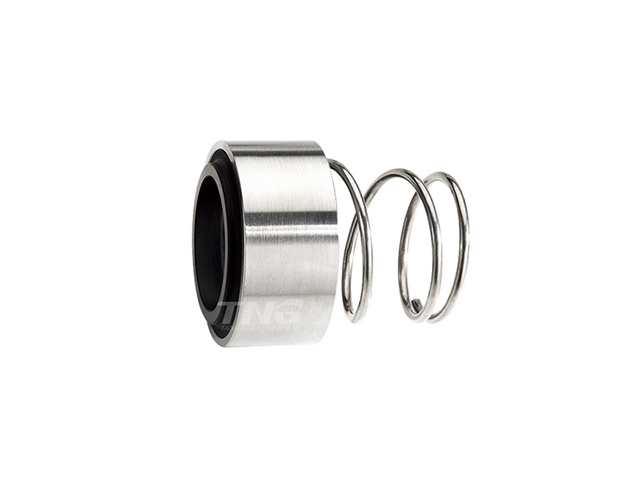

Balanced, conical spring and O-ring pusher construction mechanical seals Type TG120HB, Used in the different media and medium pressure-support conditions due to extend material options. It is widely used in the general industrial applications.

Share to:
Products Details
Features
  Conical spring, balanced,O-ring pusher construction
  Torque transmission via conical spring,  independent of direction of rotation.
  Wide option in seal face material 。
  Spring with deep coils to reduce the risk of clogging in solids content or viscous liquids.
  Medium pressure-support due to Balanced design
  Dimensional data conform with DIN24960 standard
Recommended Applications
  Paper and sugar industry,Food Processing,waste  water technology
  Low solids content or viscous media
  Medium pressure-support conditions
  Sewage pumps, chemical pumps, screw pumps, process pumps
  Other Rotating Equipment.
Operating range

Shaft diameter:  d1=12...80mm
Pressure:    p=0...2.5Mpa(362.5psi)
Temperature:    t = -20 °C ...180 °C(-4°F to 356°F)
Sliding velocity:   Vg≤15m/s(49.2ft/m)



Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

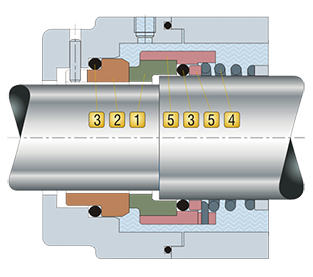

Product Structure
Combination Materials

 Rotary Face

    Carbon graphite resin impregnated Ak
    Silicon carbide (RBSIC) O
    Antimony Impregnated Carbon Graphite Ad
 Stationary Seat
    Carbon graphite resin impregnated Ak
    Silicon carbide (RBSIC) O
    Cr-Ni-Mo Sreel (SUS316) G
    99% Al2O3 ceramic B1
 Auxiliary Seal
    Fluorocarbon-Rubber (Viton) V
    Ethylene-Propylene-Diene (EPDM) E
    Silicone-Rubber(MVQ)
 Spring
    Stainless Steel (SUS304) F
    Stainless Steel (SUS316) G
    Left rotation: L Right rotation: R
 Metal Parts
    Stainless Steel (SUS304) F
    Stainless Steel (SUS316) G

Stationary Seat


Standard Stationary SeatT4G9

T4G9 equivalent to Burgmann G9


Alternatives Stationary SeatT7G9

T7G9 equivalent to Burgmann G9
