O-ring Pusher seals use a sliding secondary seal and in this design the O-ring is pushed along the outside diameter of the equipment shaft or sleeve. The O-ring retains the sealed liquid and follows along the shaft to compensate for face wear.
You are here: Home » Products > O-ring Pusher Mechanical Seals

TG155


Product variants

TG155

EagleBurgmann Type BT-FN Replacement

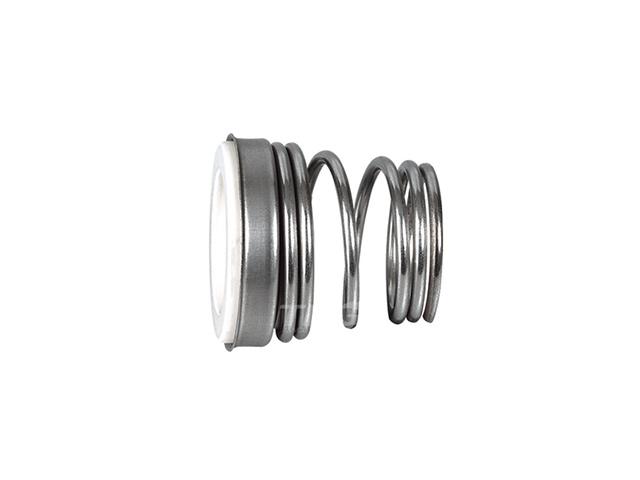

TNG mechanical seal type TG155 with conical spring and O-ring pusher construction, the metal parts produced by Stamping. competitive price and wide range of application have made the TG155 a mass-production seals.

Share to:
Products Details
Features
  Conical spring,unbalanced,O-ring pusher construction
  Torque transmission via conical spring, independent of direction of rotation.
  Stamping construction in the metal parts
Recommended Applications
  Centrifugal pump and clean water pump
  Other Rotating Equipment.
Operating range

Shaft diameter: d1=10...40mm
Pressure:  p=0...1.4Mpa（203psi）
Temperature: t = -40 °C ...180 °C(-40°F to 356°F)
Sliding velocity:  Vg≤15m/s（49.2ft/m）


Notes: The range of preesure,temperature and sliding velocity is depend on seals combination materials

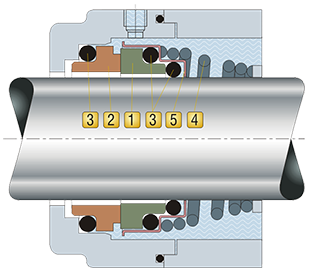

Product Structure
Combination Materials
 Rotary Face
    Silicon carbide (RBSIC) O
    Aluminium Oxide Ceramic B
 Stationary Seat
    Hot-Pressing Carbon A
    Carbon graphite resin impregnated Ak
    Silicon carbide (RBSIC) O
 Auxiliary Seal
    Nitrile-Butadiene-Rubber (NBR) P
    Fluorocarbon-Rubber (Viton) V
    Ethylene-Propylene-Diene (EPDM) E
 Spring
    Stainless Steel (SUS304) F
    Stainless Steel （SUS316) G
    Left rotation: L Right rotation: R
 Metal Parts
    Stainless Steel (SUS304) F
    Stainless Steel （SUS316) G
Stationary Seat


Standard Stationary Seat: T8RN

T8RN equivalent to Burgmann RN


Alternatives Stationary Seat: T3RN

T3RN equivalent to Burgmann RN
